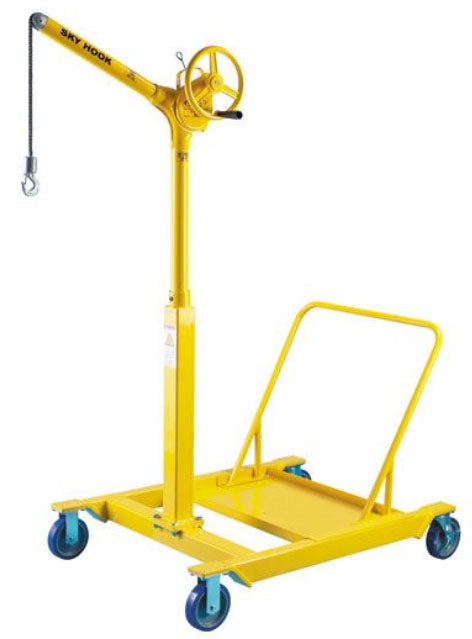

The Sky Hook Model 8565 is an ergonomic lifting device designed to reach into any area without legs under the load. Even though it only weighs 140 lbs. in total, it can lift up to 500 lbs. Ideal for material handling, lifting and moving applications in maintenance and repair facilities, shipping and receiving departments, production and assembly areas in manufacturing.
- Load limit 500 lbs.
- Sky Hook weighs 26 lbs.

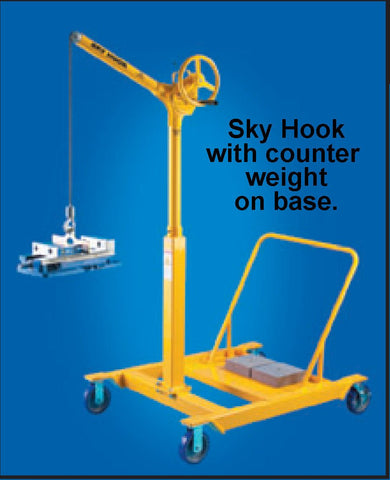

- Base weighs 107 lbs. -- customer must add counter weight to base.
- Pivots 15 degrees in each direction from center
- 75" length of chain travel
- Utilizes roller chain and friction brake
- Overall height of Sky Hook from floor is 72.6"
- One rotation of hand wheel = approximately 1" of vertical lift
- Six inch casters allow for easy movement
- Fits through a standard 3' door
- Constructed of high-strength steel
- Meets OSHA and ASME requirements
- Made in the USA
- Sky hook can be used with alternate bases - AVAILABLE BASES
TO ORDER ADDITIONAL BASES or for additional information, please email email@example.com or speak with our Sales Representative at 800-242-3477.
